    ME Series Masonry Frames

    ME Series Universal Masonry frames meet requirements for light to 14 gauge maximum duty (12 gauge available), Level 1-4 applications for interior and exterior locations in commercial and industrial buildings.

    Typically, but not exclusively for masonry applications, these frames are designed for installation as part of the wall framing sequence and may be specified and supplied as knock-down (KD) for field assembly prior to installation or welded for installation as a complete unit.

    Elevations with lights are available in ME Series and SE Series stick configurations.

    FEATURES AND BENEFITS

    Strength, durability and ease of installation

    • Attractive, tight and closed die-mitered corner connection; miter includes four corner tabs designed with concealed connection, eliminating need for continuous profile welding
    • Patented universal hinge preparations allow for easy field conversion from standard-weight .134” (3.3 mm) thick hinges to heavyweight .180” (4.7 mm) hinges
    • Adjustable base anchors allow for installation adjustment when floor is not level
    • Factory prepared for field-installed silencers

    Exceeds industry standards

    • Republic is SDI Certified through regular audits to ensure manufacturing, performance and quality standards set by the Steel Door Institute
    • Overall frame construction exceeds ANSI A250.8-2017 (SDI-100), the standard set by SDI specifying sizes, design, materials, construction, finishing and performance for standard commercial steel doors and frames
    • Hardware preparations and reinforcements meet ANSI A250.6-2003, and locations meet ANSI/DHI A115, unless otherwise stated
    • Frames meet fire rating requirements; they are listed for installations requiring compliance to both neutral pressure testing (ASTM E152 and UL-10B) and positive pressure standards (UL-10C)
    • Factory-applied baked-on rust inhibiting primer meets ANSI A250.10-2011

    Typical applications

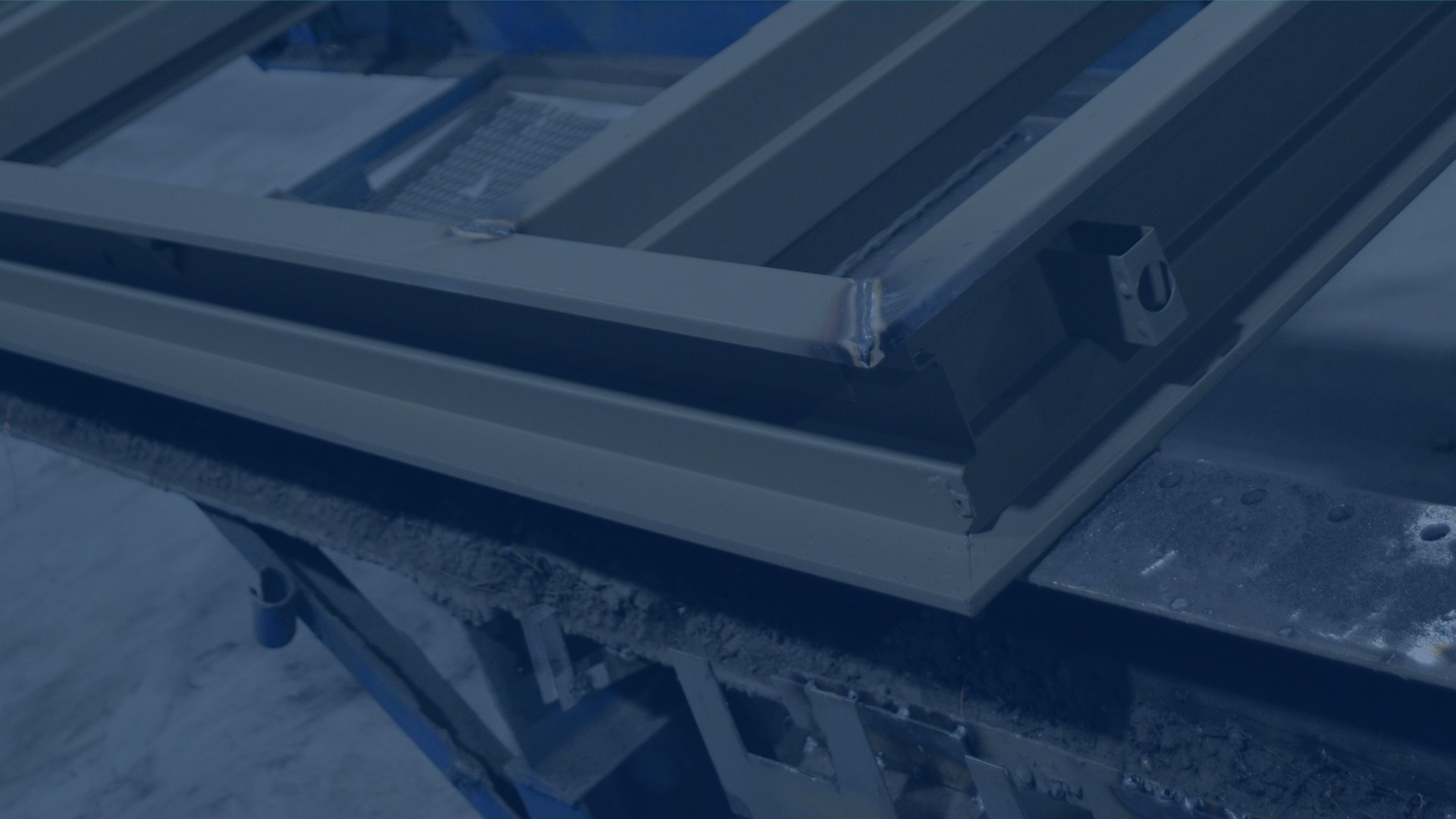

    Sometimes referred to as masonry frames, ME Series frames are typically butted to CMU block using wire or Masonry-T anchors as the wall is being built, or using POA/EMA (prepared opening/existing masonry) anchors for concrete or CMU block after the wall is up. ME Series is the most common series for welded corners to get a cleaner look without a die miter seam.

    Because you can weld ME Series, these frames are also popular in stud wall applications, and stud anchors can be specified. Here the frame must be installed as part of the wall framing sequence (as the wall is being built so the studs can be pushed up into the frame and anchored). While acceptable, most drywall applications utilize compression anchors in MH Series frames so that installation can occur in the rough opening after the wall is completely finished. Unlike ME, MH frames have a backbend return to make pushing the drywall in between the studs and the frame easier."

    Technical Data Guide

    For more information, download the Republic Technical Data Manual.

    • ME Series (Pages 66-69) includes construction, anchors, and hardware preps; modular masonry (p 79-81), fire ratings (p 100-105), miscellaneous TOC (p 107), paint (p 117-118), standard hardware locations (p 108, 121-130), specification 08110 (p 75, 131-135)
